In recent years, we offer you the proven functionality of sliding side curtain systems, which provide time savings in loading and unloading, the advantage of loading from the rear and side, and maximum security, in Turkey and even worldwide.
Sliding side curtain systems are a solution that can be applied to trucks, truck trailers, and trailers, offering customs compliance and cost-effective solutions. Our Karosan sliding curtain closed boxes provide significant advantages to users.

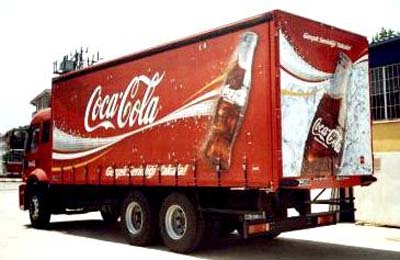

Logistic type closed boxes are commonly used for transporting daily perishable products such as dry goods or beverages from factories or fields to warehouses, large supermarkets, or fruit and vegetable markets. Our logistic type closed boxes come in three types, depending on your loading preferences.

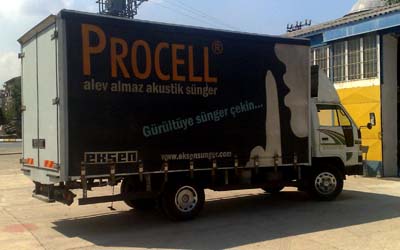

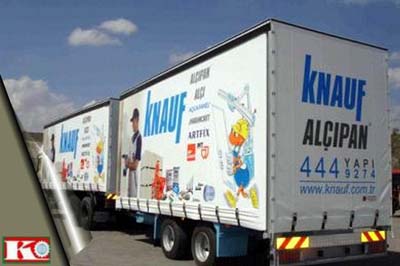

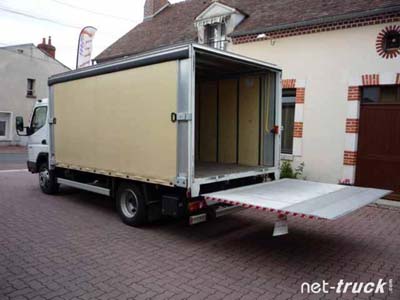

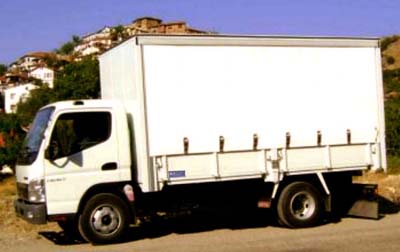

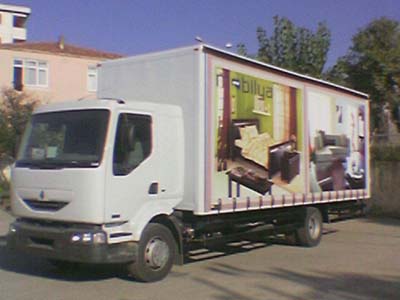

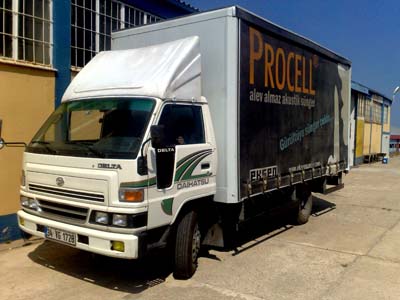

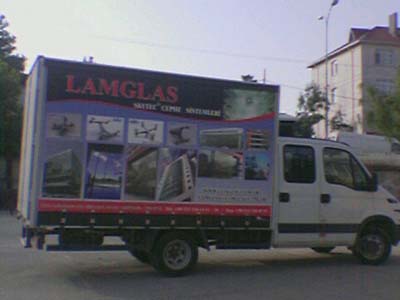

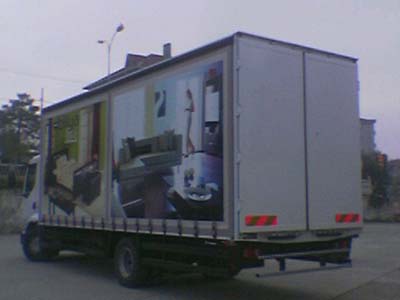

On this page, we will introduce you to our fixed-roof sliding side curtain types.
STANDARD TECHNICAL SPECIFICATIONS
- Floor: The chassis and floor are made of steel, specifically NPU or “U” profile, with a suitable thickness, designed according to the size and width of the vehicle.
- Front Wall: The frame of the front wall is made of a specially formed steel profile with a thickness of 3 mm. The exterior wall is covered with flat panel steel and supported by steel profiles. The interior lining is made of filmless plywood..

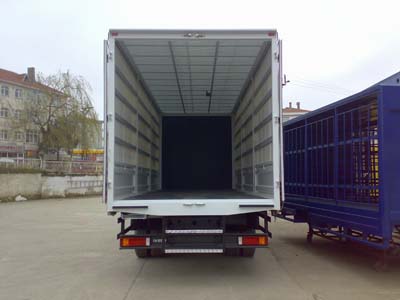

- Rear Doors: The rear door frame is made of a specially formed 3 mm thick steel profile. Typically, double swing doors are applied to the rear of the cargo box. However, alternatively, sliding belt curtains can also be used. Our collision-type doors come in two types.
|
|
Roof: The body roof is of a fixed type and has a steel frame. The outer surface of the roof is covered with a 2.5 mm thick CTP polyester sheet or a double-layered canvas with a primer.
- Side doors: According to your preference, flap-type doors with suitable height can be installed on the sides of the body. These doors are made of steel or extruded aluminum profiles. The doors have recessed vertical locks and cast hinges.
- Sliding roller system and side boards: Our sliding roller system provides convenience for side loading and unloading, saving you time during the process. This system is commonly used in large-sized vehicles. The sliding rollers, equipped with steel rollers, move within galvanized steel rails mounted on the roof. The locking system on the sliding rollers ensures secure positioning.

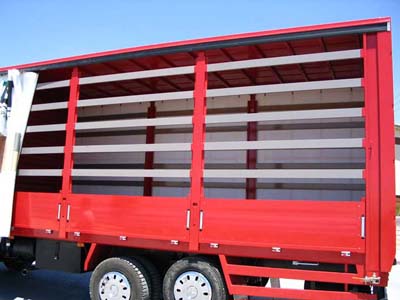

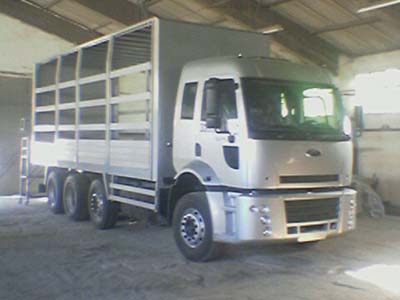

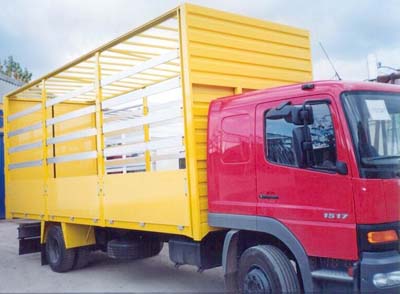

Between the sliding rollers, 3 to 5 rows of cargo holders, made of aluminum or wood, are installed. These cargo holders are removable and can be taken out during loading and unloading. They are designed to prevent the cargo from leaning against the curtains. The standard dimensions of these cargo holders are typically 25×120 mm.

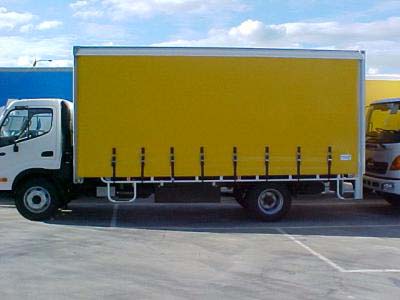

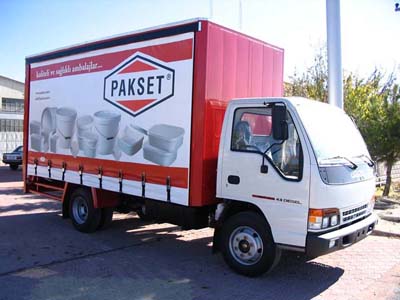

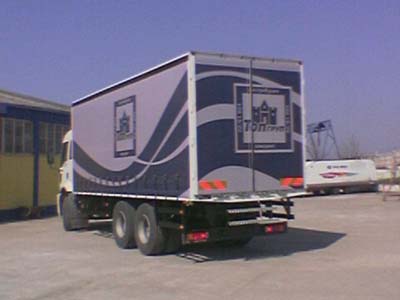

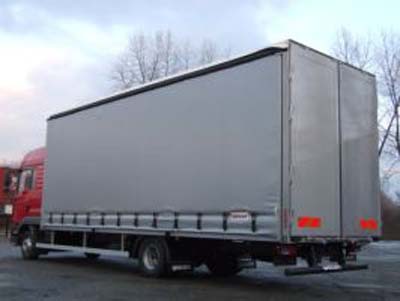

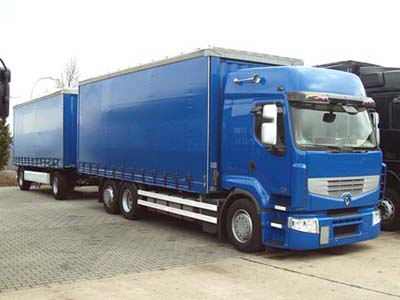

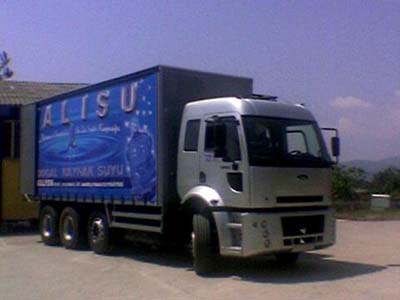

Sliding curtain system: This system is suitable for optional combinations of a fixed roof, sliding curtains, and sliding uprights. The rails are made of galvanized steel, and appropriate deformation is applied to the structure according to the length of the rails. The components that make up the system include:
- Galvanized steel curtain rail (mounted on the roof)
- Galvanized steel curtain rollers
- Front aluminum tension bar
- Rear aluminum tension bar with lower and upper adapters
- Curtain tensioning device (right-left)
- Stainless steel hooks and hangers
- Curtain fastening blades
- Rubber roof gasket
Other accessories:
- Curtain tarp: 670 gsm, woven with a 9×9 density, 1100 dtex, imported Panama tarp
- 10mm PVC solid seal
- Adhesive column
- Reinforcement tarp
- Trailer strap
- Customs rope

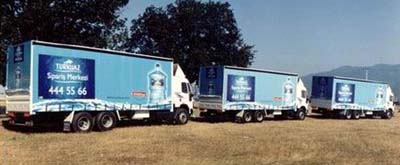

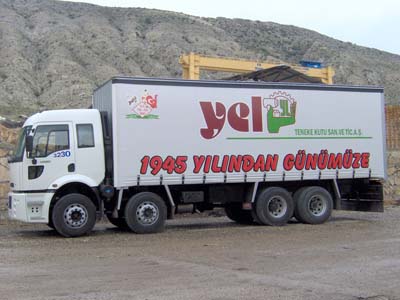

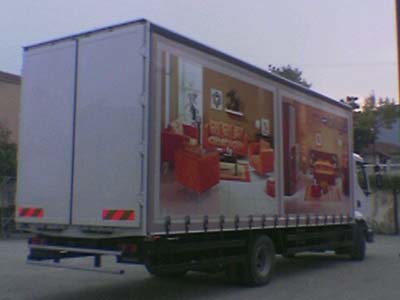

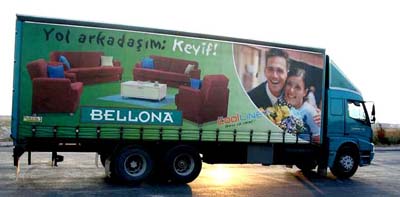

Digital curtain printing: High-quality digital printing is applied to the tarp using 3M Ink 720 Dpi 12 pass Vutek technology. After printing, a liquid lamination seal with a thickness of 16~32 microns is applied.
